How do I create a form learning resource?

1. What is a form in OpenOlat?

An OpenOlat form is a page that can be filled out interactively by users. Typically, questions are to be answered by ticking something or entering an answer as text.

The information can be stored anonymously or on a personal basis.

Authorized persons have access to the information provided and can call up evaluations.

Form learning resources are created in the authoring area by persons with the author role.


2. Course element and learning resource

An OpenOlat course is composed of course elements. Most course elements are containers into which a learning resource is inserted.

Course with three course elements, the course element of type form contains the form learning resource

Attention!
There is a form learning resource and a form course element. These two are to be kept apart. A form learning resource can be used in different places in OpenOlat (see next section).

This tutorial describes how to create the form learning resource. There are further instructions for using the learning resource in different course elements.

Note

In previous OpenOlat versions, form learning resources were called questionnaires. They were based on the QTI 1.2 standard, which is now no longer supported.

To the top of the page ^


3. Where are form learning resources used?

One form learning resource in the course elements Form, Survey and Assessment, in a portfolio template and stand-alone

a) Form learning resource in the course element Form

b) Form learning resource in the course element Survey

c) Form learning resource in the course element Assessment

d) Form learning resource in a portfolio

e) Form learning resource stand-alone

To the top of the page ^


4. What is a form capable of?

a) What does a form look like?

Various question types are available in forms:

  • Rubric
  • Single selection
  • Multiple selection
  • Text input
  • File upload

Depending on the objective, forms can be designed quite differently with it. Here is an example in the participant view:

Form with two rubrics for the teaching assessment, two text input fields and the fields first name and last name


b) What does a form consist of?

Each form consists of a page with one or more questions or other elements (e.g. title). The individual elements can be selected in the editor and then be edited. In some cases, a pop-up (inspector window) with setting options is displayed.

Rubric in the form editor with the inspector window open for type, steps and obligation, above it the menu Administration with the entry Form editor highlighted


c) How does a form work?

If participants have entered a response in the form, the entries are saved per participant.
Exception: An anonymous survey was created.

The answers can be viewed by authorized persons.
Who is authorized can be configured, see 8. Configure forms.

If coaches click on exactly the same course element with form in the course, they do not see the form at first (like the participants), but an automatically generated report. For the details, the individual forms can be accessed.

At the top the form to fill in, at the bottom the list of submitted forms with status and submission date

Question rules

A branch is also possible via question rules: "If question xy is answered this way, then ..."

You can find the icon for creating the rules in the header of the form editor.

Link Question rules in the toolbar next to the Administration menu

To the top of the page ^


5. Create/edit forms

A special editor is available for creating form learning resources. It can be called from different places:

a) Authoring > create new form

You can create a form learning resource directly in the authoring area. Subsequently, you can access this prepared form learning resource when editing a course and include it in a course element.

Create menu with the entry Form highlighted


b) Authoring > tab "My entries" > select available form > Form editor

Does the form learning resource already exist but is still empty? Since we then edit a form learning resource, it can be found in the authoring area under the tab "My entries". (Only courses are listed under "My courses".) Use the filters to search in large databases.

To edit, click on the title and then open Administration > Form editor. Alternatively, select the entry "Form editor" in the menu with the 3 dots at the end of the line.

Tab My entries with the filter Type Form, the menu under the 3 dots of a row is open and the entry Form editor highlighted


c) Course editor > course element > tab for learning content (e.g. tab "Survey") > button "Choose, create or import"

If you have inserted a course element in the course editor (e.g. the course element "Survey"), then a learning resource must be inserted there under the tab "Survey". If no form learning resource is prepared, a new form learning resource can also be created directly here.

Tab Survey without a selected form, with the button Choose, create or import


d) Course editor > course element > tab for learning content > button "Edit"

If a form learning resource is already included in the course element, the editor for form editing can also be opened from the course editor.

Tab Survey with an embedded form and the buttons Replace and Edit

Tip

Since the learning resource form can be used in many different ways, it makes sense to consider the later use already when assigning the title, e.g. to prefix it with a suitable abbreviation. This makes it easier to find and assign the learning resource later.

Tip

When you create a brand new form learning resource, you will be taken to the settings screen after the title entry prompt. Here you can optionally make settings right away, e.g. store a license. However, you can also access it again at any time later. For more information, see 8. Configure forms.

Important

If a form has already been used (filled in by participants), there are restrictions on editing. (See below: 9. Modify forms)

To the top of the page ^


6. Designing forms in the editor

Once you have opened the form editor via Administration > Form editor, you see the default layout with one column. You insert further layouts with the button "Add a new layout".
A layout here means a grid. You can insert several such layouts one after the other.

New form in the form editor with the default one-column layout, the entry Form editor in the breadcrumb navigation and the button Add a new layout highlighted Button Add a new layout with the selection of nine layouts open


The content can now be inserted into the fields of the layout (title, single choice questions, etc.).

If you want to change the layout afterwards, you can open the selection tool again at any time by clicking on the small gear.

Gear of a two-column layout opens the window Layout to replace the template


In the example below, the layout has been changed from two columns to one column.

Now add titles, paragraphs (sections) and the different questions. It is best to start with a title and add a short introductory text with the "Paragraph" element to inform the participants accordingly.

Selection after clicking Add content with the groups Content, Question type, Organisational and Layout


In each case, click "Add content" and then use the options provided.
For example, for a "Title" element.

Title element with text in the form, in the window Title the selection of the size

For a "Rubric" element, the options are much more diverse. However, the same principle of procedure always applies:

  • Select an element.
  • The displayed options apply to the currently selected element.

Explore the many options available!

Rubric with formatted row text, weight per row and the open type selection in the window Rubric


Finish editing

  • Repeat the process until the form is completed.
  • As an alternative to the "Add content" button, you can also click on the icon with the 3 dots for content that has already been added and then select "Add before" or "Add after". You will see the selection of all elements again.
  • If you want to use recurring elements, you can also duplicate them.
  • If you want to change the order of the elements, you can simply drag and drop them.

When you are done close the editor by clicking on the title of the form in the breadcrumb navigation. The form is now saved and you will see the form from the participants' perspective.

To the top of the page ^


7. Testing forms

To test a form as an author, switch to the participant view:

Role menu with the entry Participant view under Switch to


Limited editing possibility after data entry

When others (non-owners) test, their entered data is saved and a form can only be changed to a limited extent afterwards. This prevents subsequent manipulation.

If others have already entered data into the form, it is best to create a copy of the learning resource or course element and continue working with it.


Tip when a 'Not accessible' appears

If you as an author have published a course (left the course editor), it often happens that the course element with the form learning resource is not accessible.

Often it is because authors are not allowed to fill in the form themselves according to the preset configuration. (Because they are owners but not participants.)

You can get around this by switching roles to the participant view in the editor.

To the top of the page ^


8. Configure forms

Where are configurations done?

Already when creating a new form learning resource you get to the settings after specifying a title. There you can configure the learning resource. Often you skip these input fields at first. The settings can be called up again at any time and edited.

You have also made settings when creating the questions. You have configured individual questions. The configurations can therefore be made at different levels:

Configuration on four levels: course, course element, learning resource form and single question

Configuration of the course:
Course > Administration > Settings

Configuration of the course element:
Course > Administration > Course editor > "Course element" > tabs of the course element

Configuration of the learning resource:
Authoring > "Form learning resource" > Administration > Settings

Configuration of a question:
Open the form in the form editor: Administration > Form editor. Clicking an element switches to the edit mode, and the related options appear.


What can be configured?

A complete enumeration of all configuration options across all levels would be too extensive at this point. The main options concern

  • the appearance of the form and the questions
  • who may fill out the form
  • in which period the form can be filled in
  • whether the information is collected anonymously or personalized
  • who may see the entries and evaluations
  • ...

Anonymous or personalized?

You can have forms filled out anonymously or with the name. By default, no personalized information is recorded. By adding an element "Information" the anonymity is removed and a personalized evaluation is possible. Selection Add content with the element Information highlighted in the group Organisational

Note on Share

If you want to use the form in course elements, you do not need to set up the tab "Share" of the learning resource Form any further. Setting up the tab "Share" is primarily relevant if you want to use the learning resource stand-alone.

To note when the learning path is used

Are you using the learning path? If yes, make sure that the configuration of preceding course elements or the top course node does not undesirably restrict processing. E.g. by sequential learning steps or if the preceding course element must be completed compulsorily before one arrives at the form.

To the top of the page ^


9. Modify forms

As soon as a form learning resource has been included in a course element and a participant has filled in the form, data exists. However, this also means that the form must not be changed after the first use. This would otherwise allow any subsequent manipulations.

Once a form has been included and called up in the course, the form can therefore only be changed to a limited extent.

No longer possible is, for example, the addition of further questions or question rules.

Possible is e.g. still the change of the name of a rubric:

  • In the form editor, click the relevant rubric to edit it.
  • Select the "Extended" tab in the inspector popup.
  • Change the name of the rubric in the field "Name". "Show name", "Positive rating" and the value ranges "Insufficient", "Neutral" and "Good" also remain editable. The field "Scale type" is locked.

Message about restricted editing, in the tab Extended of the rubric the field Name is highlighted

To the top of the page ^


Examples

Example 1: Teaching quality survey

Characteristics:

  • often single choice, in order to force a clear statement
  • anonymous

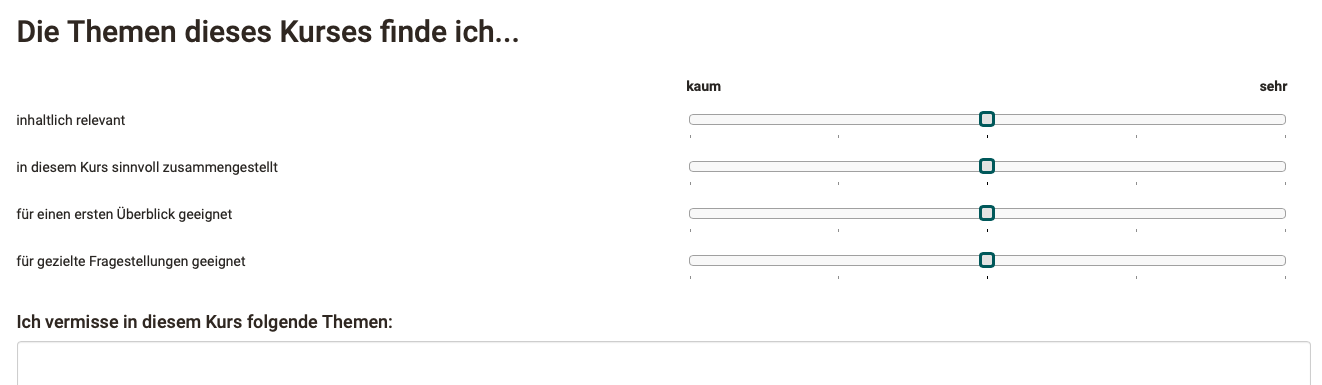

Questions with sliders from hardly to very and a text input field for missing topics

OpenOlat learning resource to download


Example 2: Employee survey

Characteristics:

  • personalized
  • often text input, e.g. personal goals of the employees
  • fewer questions with answer type correct / wrong

Example 3: Customer satisfaction survey

Characteristics:

  • often traffic light system, as it simplifies the response and means little effort for customers

Example 4: Assessment of the oral presentation in English

Characteristics:

  • personalized
  • assessment criteria independent of topic
  • form options must be quickly comprehensible for the evaluating examiners

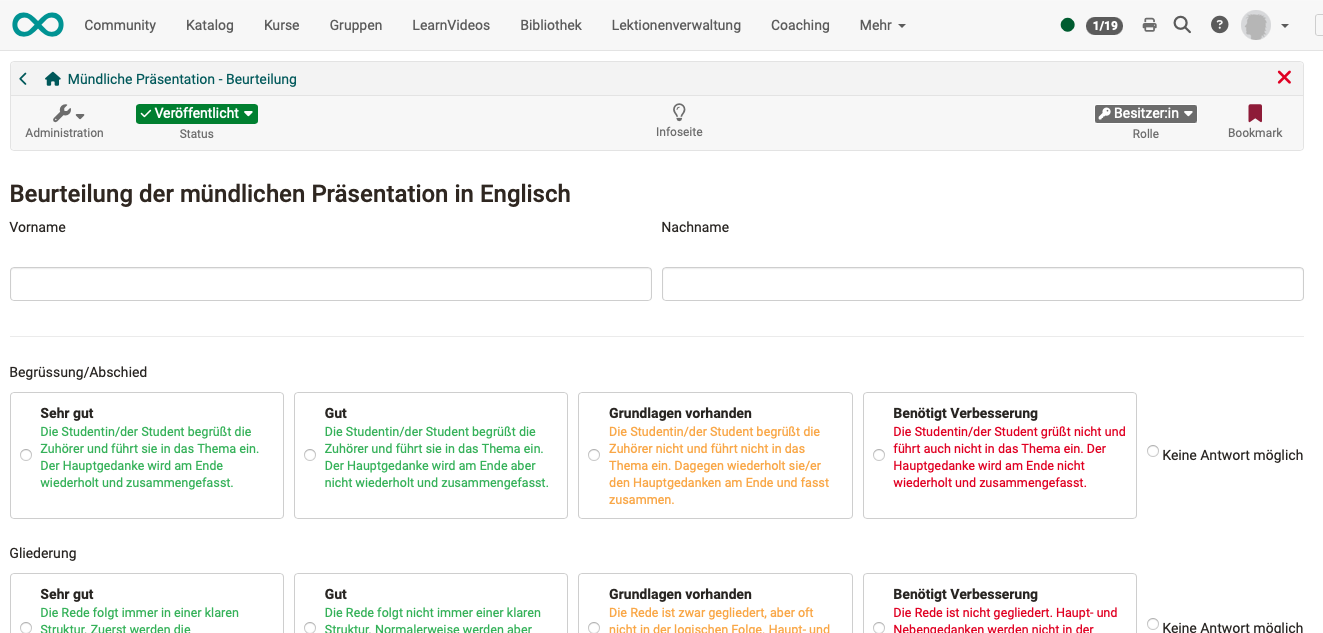

Rubric with the levels very good to needs improvement and a description of the criteria per level

OpenOlat learning resource to download


Example 5: Rubric in the peer review

Characteristics:

  • form usually contains only 1 rubric element (except title etc.)

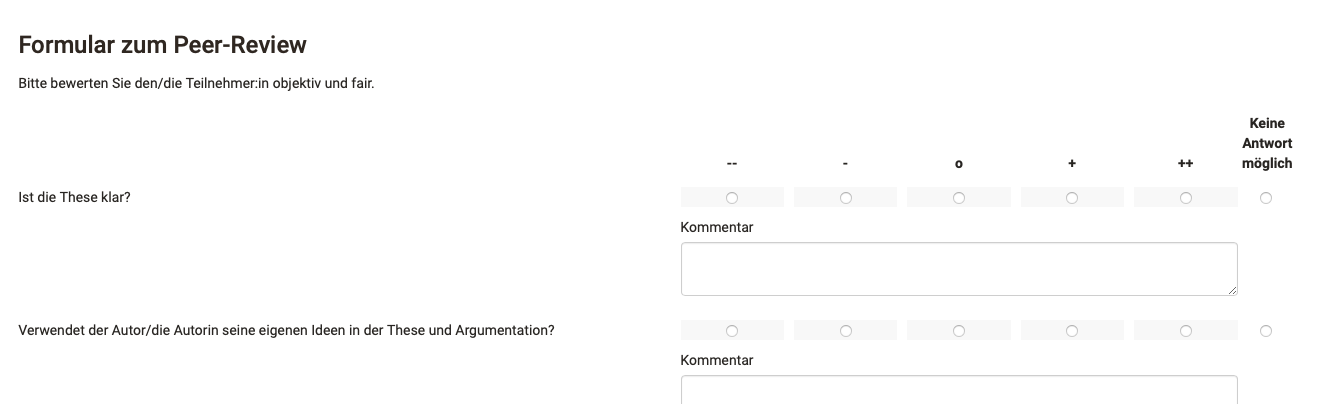

Rubric with a scale from -- to ++ and a comment field per question

OpenOlat learning resource to download

To the top of the page ^


Further information

Further reading
General information on forms >
The Form Editor >
Form elements >
The form element rubric >
Question rules in forms >
Forms in courses >
Course Element "Form" >
Course Element "Survey" >
Forms in Rubric Scoring >
Course Element "Task" >
Form in the Portfolio 2.0 template >
How do I perform a peer review? >
